The ultimate Solar Carport for your vehicle

Maximize the utility of your open-air parking area with Alumil’s Solar Carport. Marrying robustness with elegant aesthetics, Alumil’s Solar Carport represents a pioneering sunshade solution that seamlessly blends the functionality of sheltered outdoor parking with the generation of eco-friendly energy via photovoltaic panels integrated into its canopy.

Νo front columns for easy parking

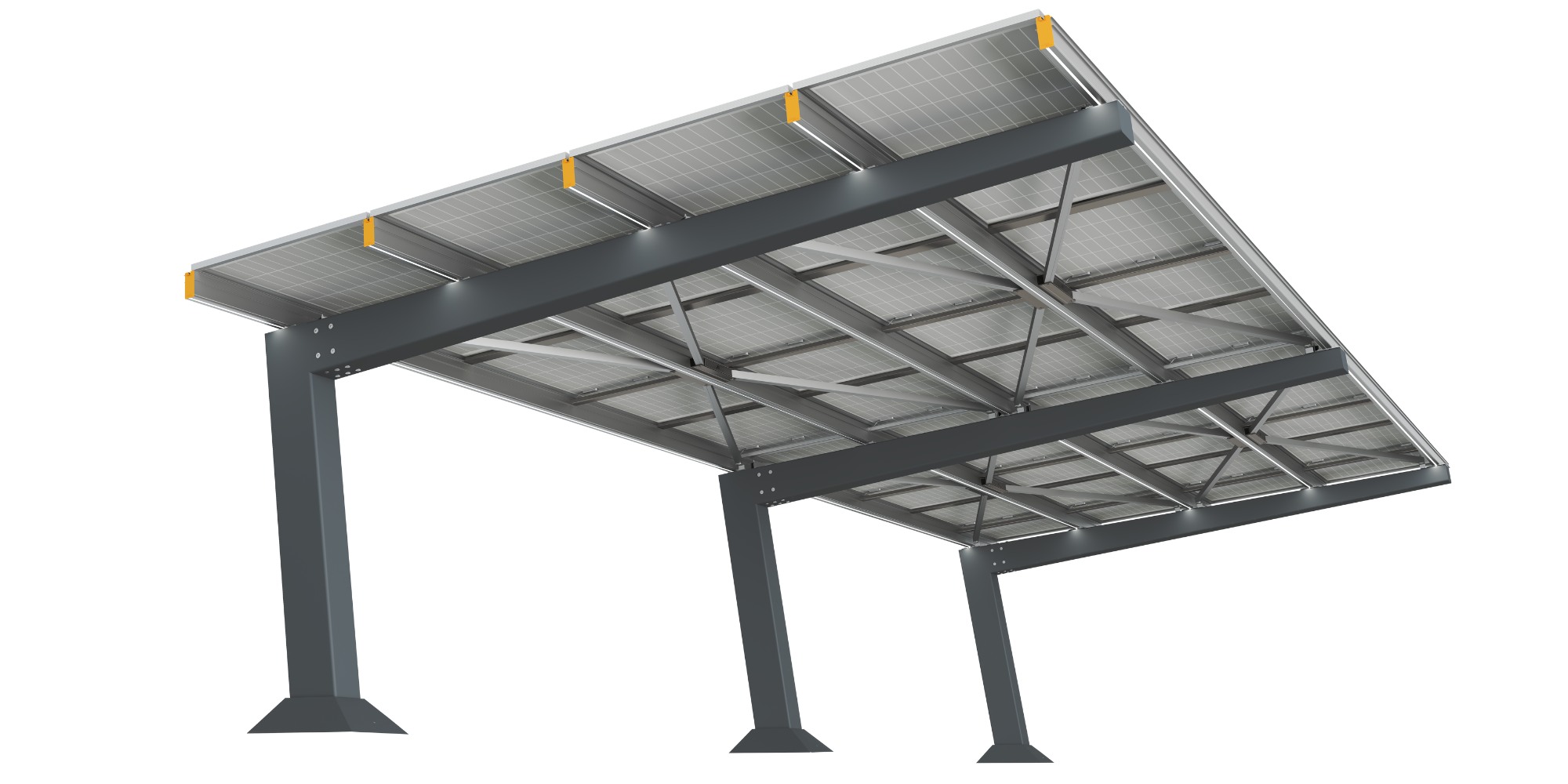

High aesthetics enhanced by the option to add LED lighting.

Possibility to enlarge the structure to cover large-scale outdoor parking areas.

  • Exceptionally sturdy construction, featuring spacious support columns for every pair of parking spaces (2.5 m per parking slot according to the current legislation).
  • Capability to install an electric vehicle charging station.
  • Providing efficient shelter for vehicles from sun and rain while exhibiting strong resilience against heavy snowfall.
  • The innovative design facilitates the smooth and safe ingress and egress of vehicles, minimizing the potential for damage.
  • Attention-grabber, courtesy of its capability to incorporate LED lighting, featuring concealed wiring and waterproofing.
  • Possibility to enlarge the structure to cover large-scale outdoor parking areas.
  • A wide selection, top-notch quality, and enduring nature of the surface treatments provided.

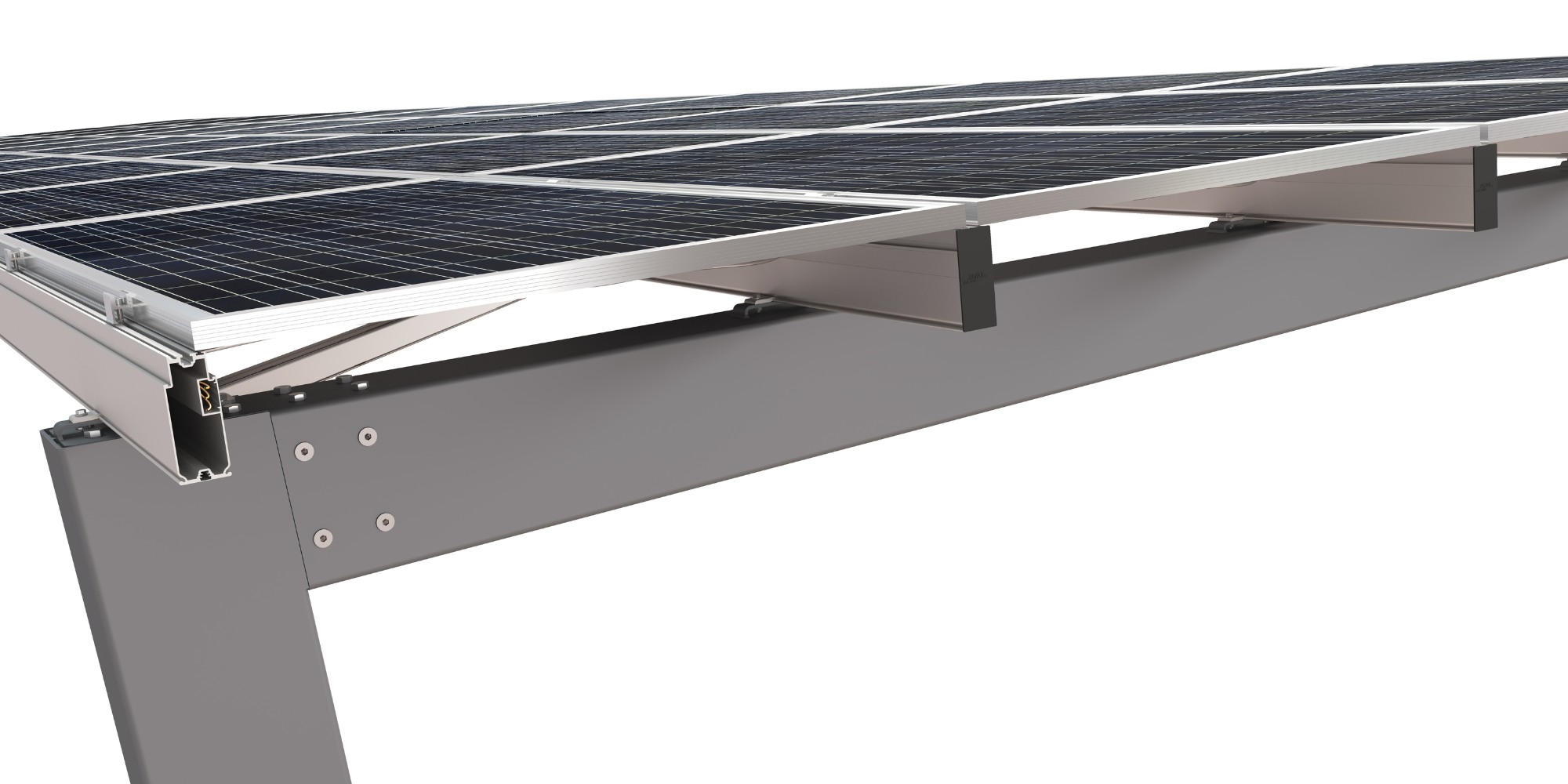

  • Materials: Anodized Aluminum Alloy 6005, Steel column & beam of 6 mm thickness
  • Application: Outdoor parking areas

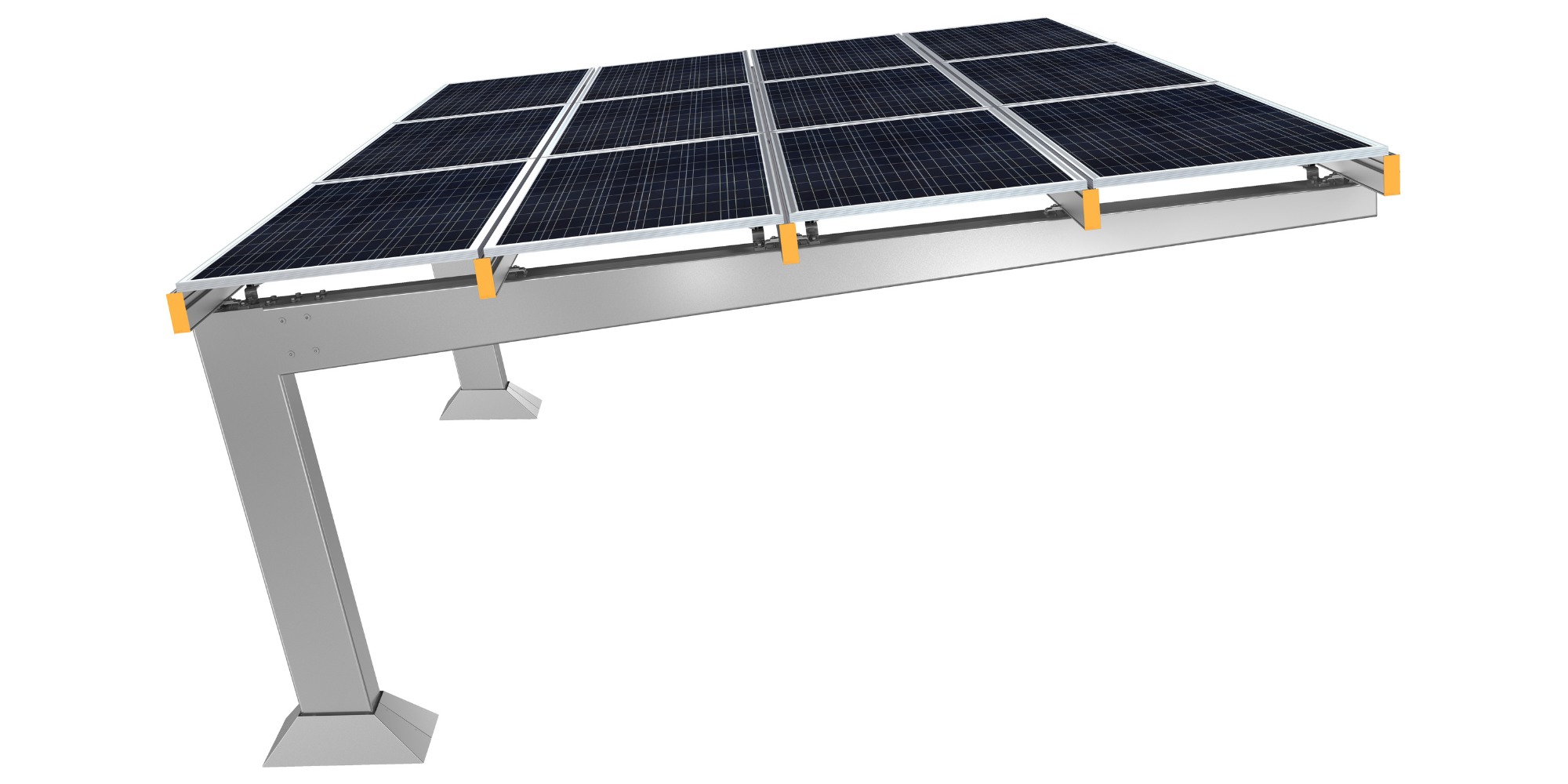

  • Standard alignment: 4 Panels/Landscape
  • Standard Inclination: 6°
  • Foundation: Reinforced concrete
  • Electrostatic painting of steel
  • Appropriate panel width: 1130 mm – 1140 mm
  • Maximum construction height: 2.7 m
  • Snow load: up to 100 kg/m²
  • Wind speed: up to 120 km/h
  • Static Analysis According to Eurocodes 3,9, CFD Analysis, CE
